How to Search for Melbourne Alignment Surveys

To find a Melbourne Alignment Survey firstly find the property in the VIC Map you are after and ensure you have a Job set. Having a Job already set will assist in ease of downloading the Survey.

Once the property is found, select Show on Map in the Parcel Info.

Please see below screenshot for your reference:

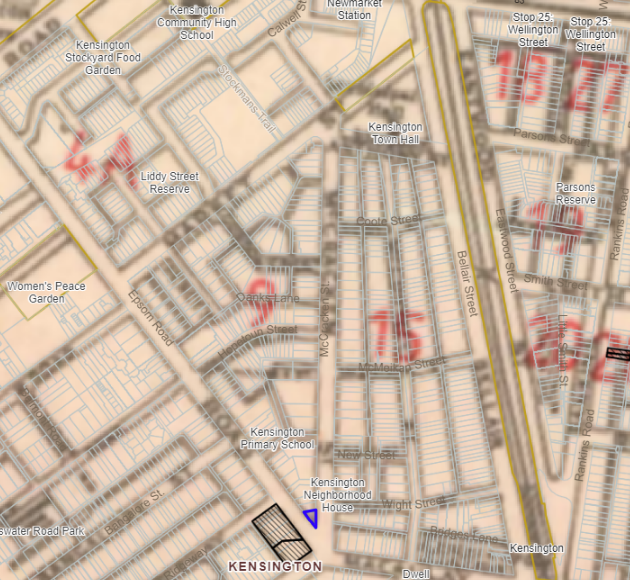

This will then show an overlay of the Alignment Plan on the Map with number references in red shown below:

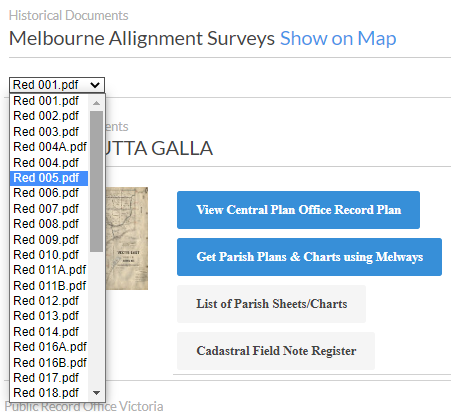

Once you have the number we can then refer to the drop down menu in Parcel Info and obtain the plan associated.

This will automatically download for you once selected from the drop down menu.


Please feel free to watch a video guide on this should you need:

Guide on how to obtain an Alignment Survey (VIC)
